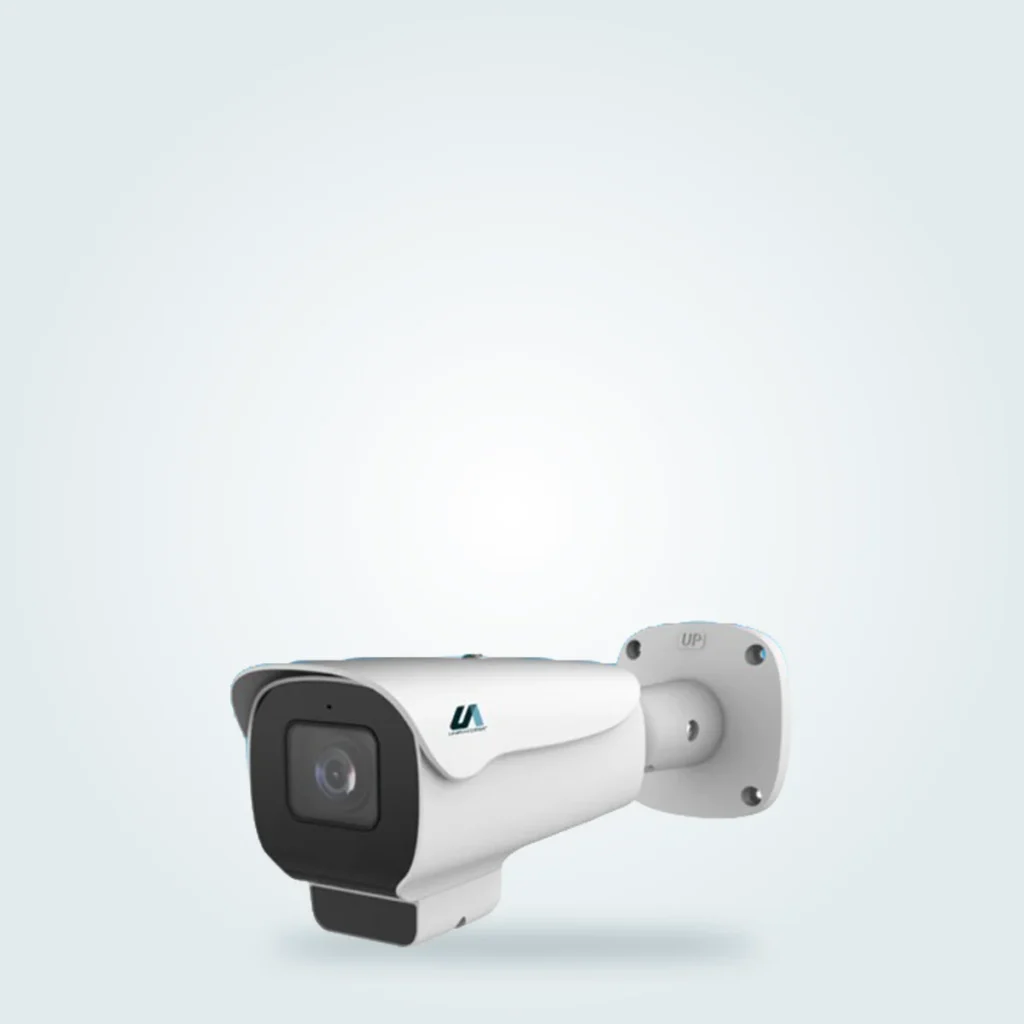

UCAMERA ANPR

Overview

Model SN-IPR8045DQAN-T-VZ

UCamera ANPR is a 4MP network bullet camera with an AI-based license plate recognition algorithm. It reads plates at vehicle speeds of up to 60 km/h, supports Saudi plates by default, and holds white and black lists of up to 5,000 records for access decisions.

A 5–50 mm motorised lens and smart IR up to 100 m give clear images day and night, and the IP66 housing is designed for outdoor installation.

Key features

AI plate recognition
Reads plates at up to 60 km/h; default support includes Saudi Arabia.
Access lists
White and black lists of up to 5,000 records.
Imaging
1/2.8" progressive-scan CMOS, 4MP (2592 × 1520) at 50/60 fps.
Lens and IR
5–50 mm motorised-focus lens; smart IR up to 100 m.
Built for outdoors
IP66, −40 °C to +55 °C, 12 V DC or PoE.

Technical specifications

Source: UnifiAccess LNPR camera datasheet (SN-IPR8045DQAN-T-VZ)

Downloads

UCAMERA ANPR datasheetPDF · 1.4 MB · English

Technical specifications — UCAMERA ANPR
Model	SN-IPR8045DQAN-T-VZ
Image sensor	1/2.8" progressive-scan CMOS
Max. resolution	4MP, 2592 × 1520
Lens	5–50 mm, motorised focus, F2.0
IR distance	Up to 100 m
Vehicle speed (LPR)	Up to 60 km/h
White/black list	Up to 5,000 records
Network	1 × RJ-45 10/100Base-T; ONVIF Profile S/T/G/M
Power	12 V DC / PoE (802.3af); max. 9.8 W
Operating temperature	−40 °C to +55 °C
Protection	IP66
Dimensions / weight	303 × 100 × 107 mm, 1.25 kg
