UPASS FT ELITE

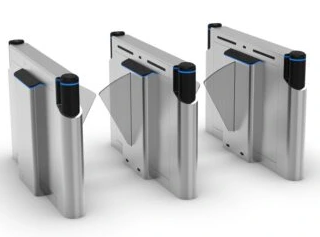

UNIFI Customized Flap Turnstile is a flap-style turnstile for regulating pedestrian flow in low-security environments.
- Wide Passage: 900mm passage width for comfortable access
- Flap Design: sleek leaf-type housing
- Access Control: allows only authorized users to pass
- Unauthorized Entry Prevention: acts as a physical barrier at entry points
- Customizable: tailored to suit different site requirements
CUSTOMIZATION
- Product Name: UGate Smart • Dimension: 352mm x
- 1040mm x 352mm (W x H x D)
- Weight: Approx. 41kg without arm
- Operation Voltage: 220V AC ±10%, 50-60 Hz
- Operation Temperature: -30 °C to + 65 °C (Humidity 90%
- non condensing)
- Protection: IP54
- Smart Option: Internal smart CPU for cloud connectivity supporting dual ethernet interface, WIFI, GSM 5G, Bluetooth 5.3, RS485, RS232, 2x USB 2.0, USB 3.0
- Standard Color: High quality aluminum anodized finish corrosion resistance Ventilation — Dusty Gray RAL 7037
- Drive technology: DC 24V, Brushless servo motor, opening/closing time 0.8 - 1.4 Sec
- Boom Length: Max Boom Length from 3-6 M, Articulated boom optional upto 2.9 x 2 M
- Contour Stripes: Dynamic RGB
ACCESS METHODS
- RFID Card
- QR code
- Barcode
- Counter
- Face recognition
- Fingerprint recognition
- Coin/Card collection
- Button
KEY FEATURES
FUTURISTIC SPEED GATES WITH STYLE, SAFETY, AND SMART FUNCTIONS:
Boasting a highly modern design, this futuristic speed gate series combines style and performance in a unique way. These speed gates feature a powerful DC motor drive and a heavy-duty BLDC gear motor, designed to ensure long-lasting and maintenance-free performance, even in heavy-use environments.
ENHANCED SECURITY WITH DEADLOCK® TECHNOLOGY
The DeadLock technology ensures the gate leaves are tamper-proof and cannot be opened manually by unauthorized people in cases of vandalism.
AI-POWERED SECURITY MONITORING
By making use of AI technology and the installation of highly accurate infrared sensors, the system is able to detect instances of tailgating, reverse entrance, as well as unauthorized access.
INTEGRATED OLED DISPLAY
The optional display of an OLED screen is great for displaying promotional materials. When combined with an intuitive user interface, the experience is seamless for customers.
PRECISION SAFETY CONTROL
High precision in the control of leaf force and speed, as well as highly sensitive safety sensors, ensure that the gates cannot be pushed by hand, even if the intention is to gain unauthorized access.
INTELLIGENT DIAGNOSTICS & CONFIGURATION
This system has an in-built smart selfdiagnosing system that monitors the system’s health and identifies critical system failures to provide real-time error and warning logging.
