UPASS TT CLOUD

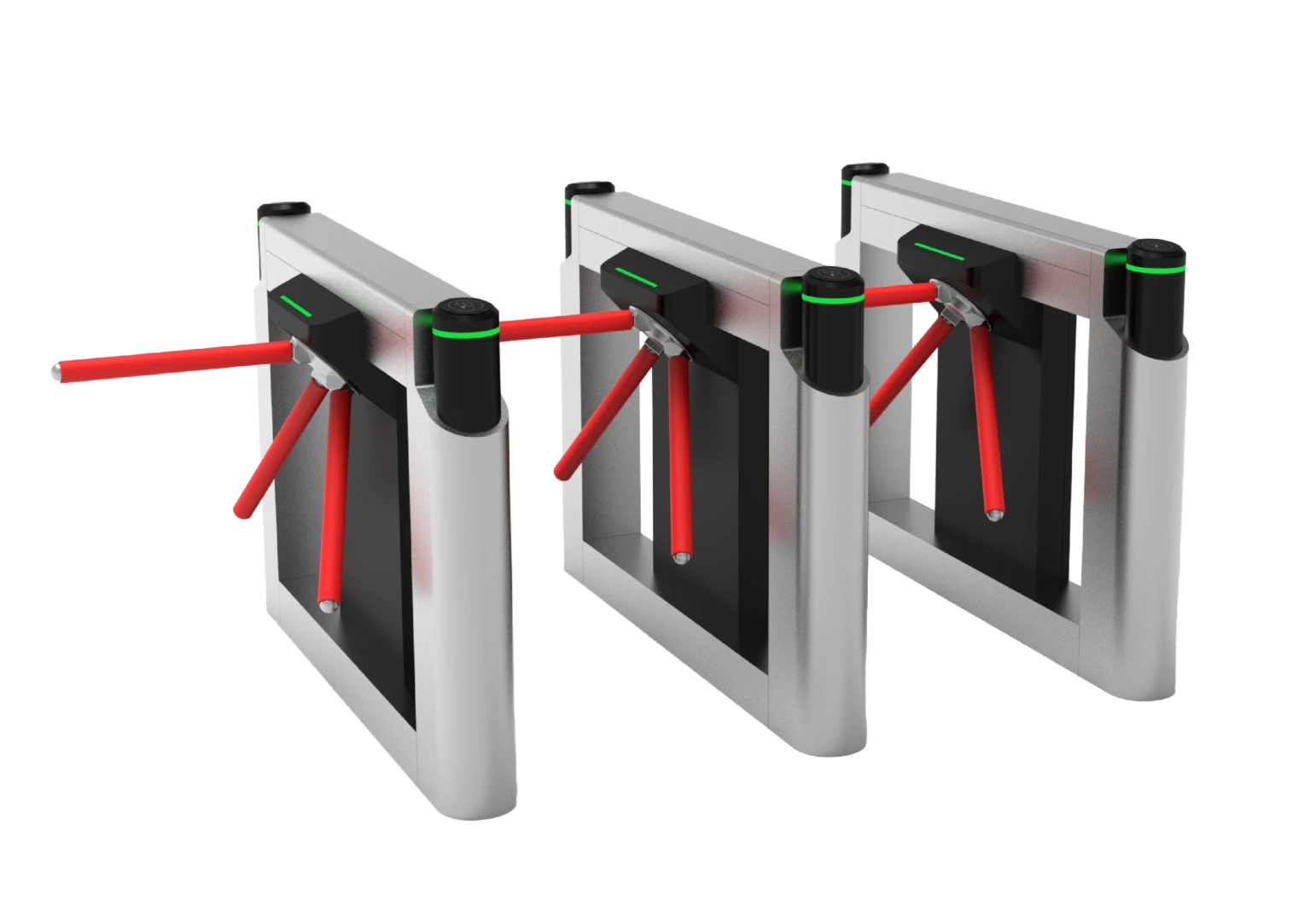

UPASS TT CLOUD is a three-arm security turnstile for controlled, efficient pedestrian access in high-traffic areas.
– Controlled access: arms rotate per entry and automatically reset after each use
– Uni- or Bi-directional: allows passage in one or both directions through the same point
– Clear Signals: visual indicators and audible alerts show access granted or denied
– Enhanced Security: prevents unauthorized entry and manages pedestrian flow
– Durable Build: 304 stainless steel designed for heavy use and harsh conditions
TECHNICAL INFO
- Dimension: Can be made according to the client's site.
- The semi-automatic mechanism can be replaced with a fully automatic mechanism.
- Material: 304 stainless steel to 316 stainless steel (wet environment), or iron with powder coated.
- The outer paint finish can be colour coated to match the local environment.
- LED lights can be added.
- Mounting base can be added.
- LOGO can be customized.
- Customized 3D drawings are available based on the site photos.
- OEM& ODM service is available.
SPECIFICATIONS
- Dimension 1400*280*1010mm (4.59*0.92*3.31ft) (standard
- Passage Width 550mm (1.80ft) (standard)
- Arm Length 510mm (1.67ft)
- Mechanism Semi-automatic
- Pass Rate 30-40 person/min
- Frame Material 304 stainless steel and powder coated (standard), 316 stainless steel
- Power Supply 100V-240V 50/60Hz
- Drive Solenoid DC 24V
- Open Signal Passive Relay (Dry Contact)
- Working Direction Bi-directional(standard), Unidirectional
- Emergency Automatic drop arm after power failure
KEY FEATURES
LED ALERTS
The front LED will keep green shows that the lane is available. If the lane is not available, it will turn red.
WORKING DIRECTION
Single directional or Bidirectional are optional.
HYDRAULIC DAMPER
Equipped with a hydraulic shock absorber for less noise during operation.
EMERGENCY EXIT
Functionality allows free passage in the event of an emergency.The arm will drop off when power outage. Manually reset when power is restored
ANTI-PASS BACK
The turnstile will stay in lock if someone wants to entry in the reverse direction.
ANTI-INTRUSION
The gate is locked automatically until a valid open signal is sent.
FAST UNLOCK
One there is a valid signal, the gate will unlock within 0.2s (adjustable).
AUTOMATIC RESET
Arms will lock automativcally within 5s (adjustable) if a person delay to access.
